A gravel mile muncher, taking your gravel rides to another level
Your Passport to Exploration

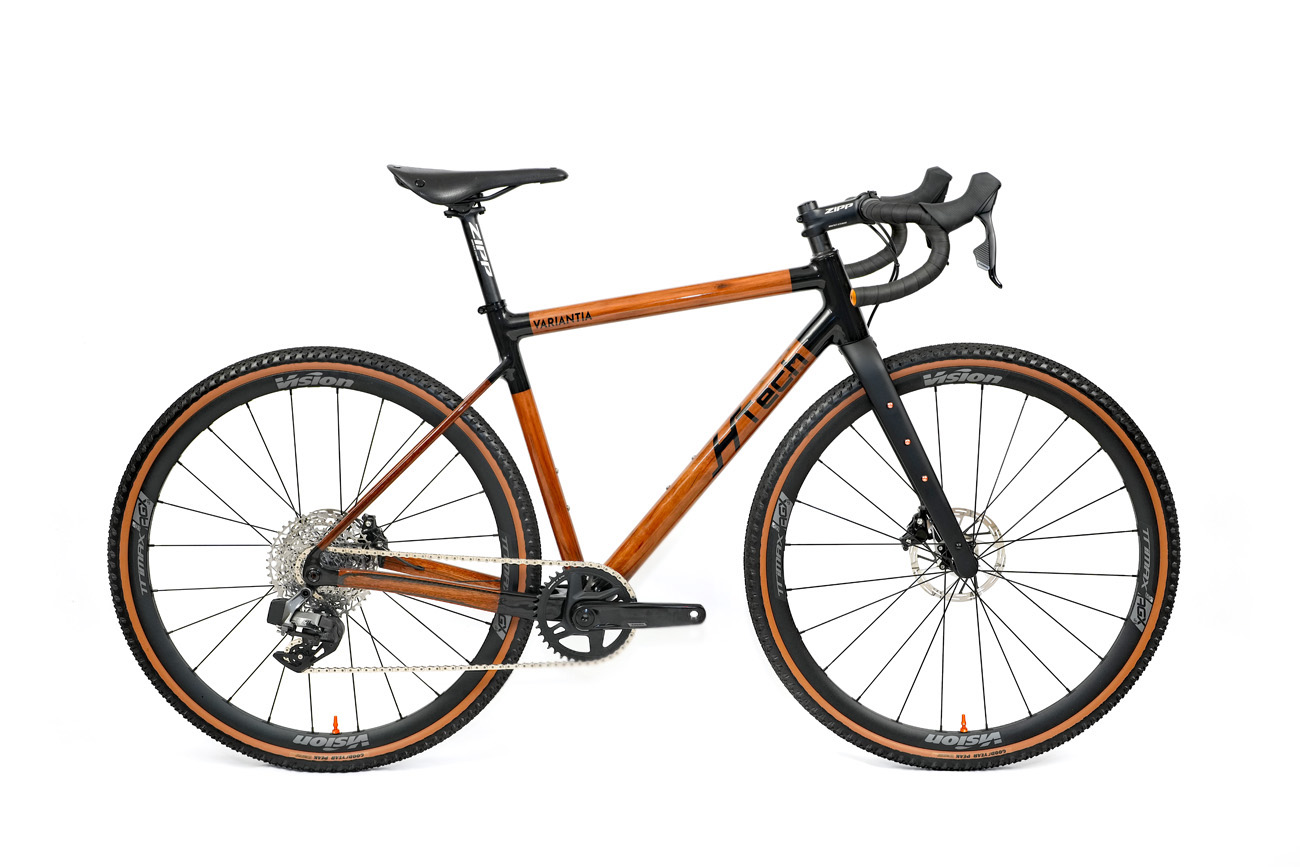

The HTech Variantia, crafted using HTech’s innovative HRP manufacturing techniques, is purpose-built to conquer any terrain. Its name Variantia is derived from Latin, meaning 'variance', a fitting descriptor for a frame designed to handle everything from rugged trails and singletracks to bustling city streets.

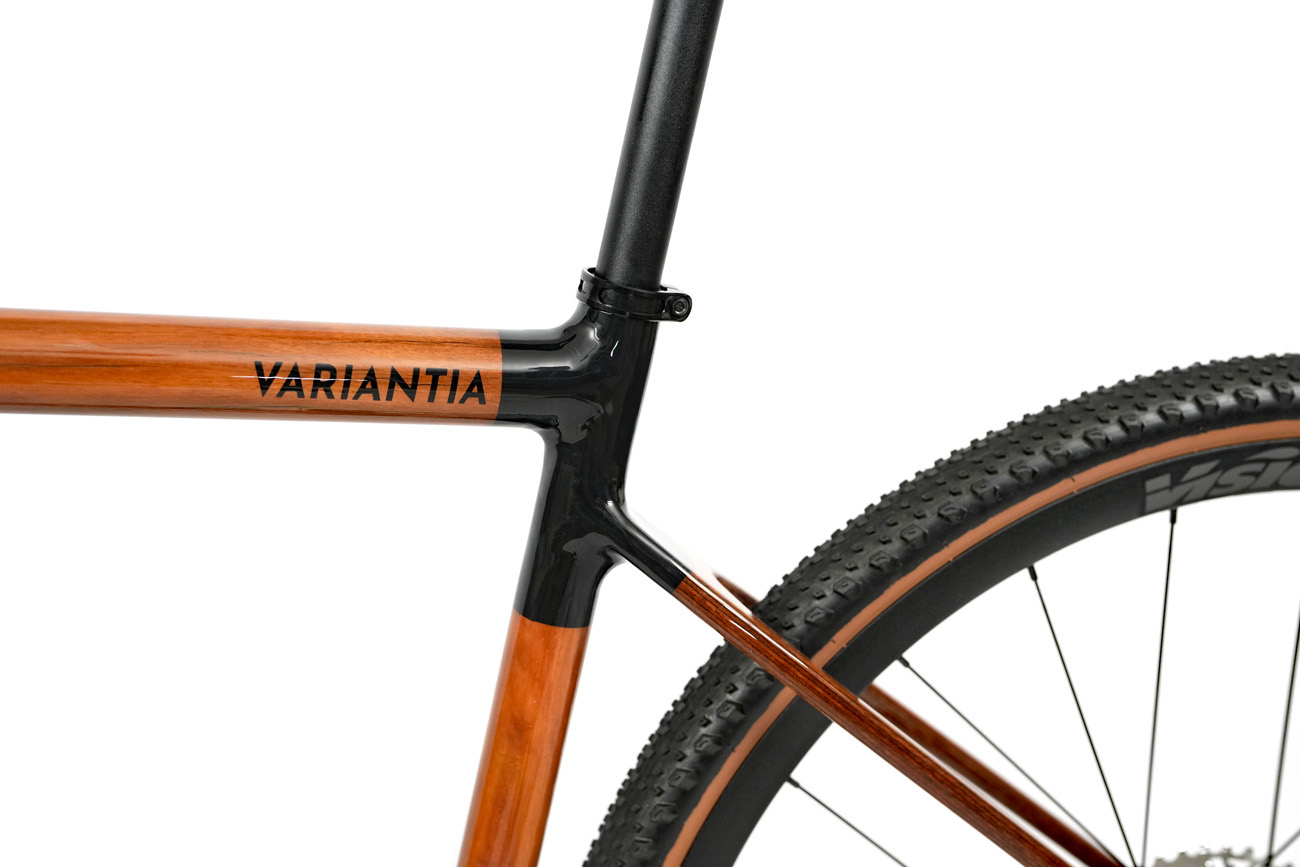

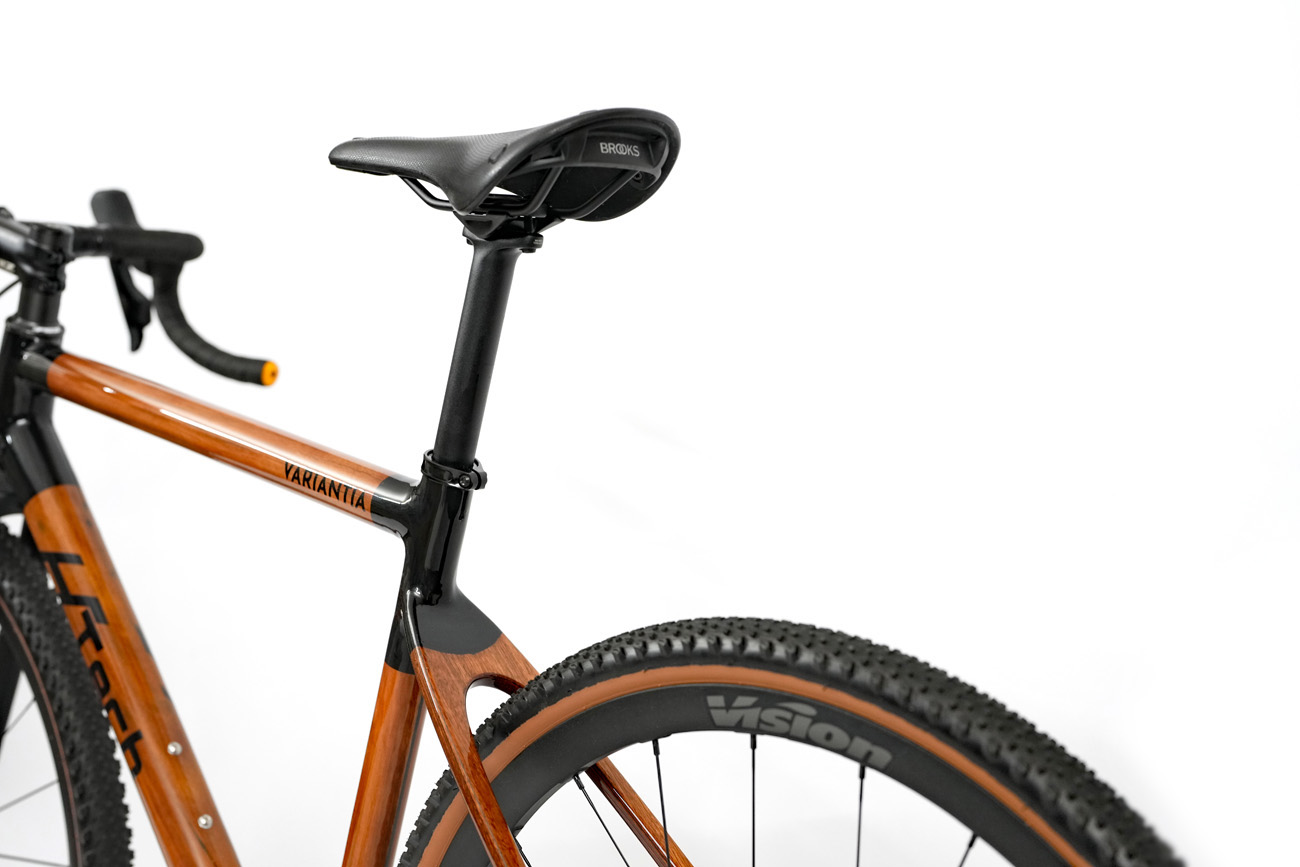

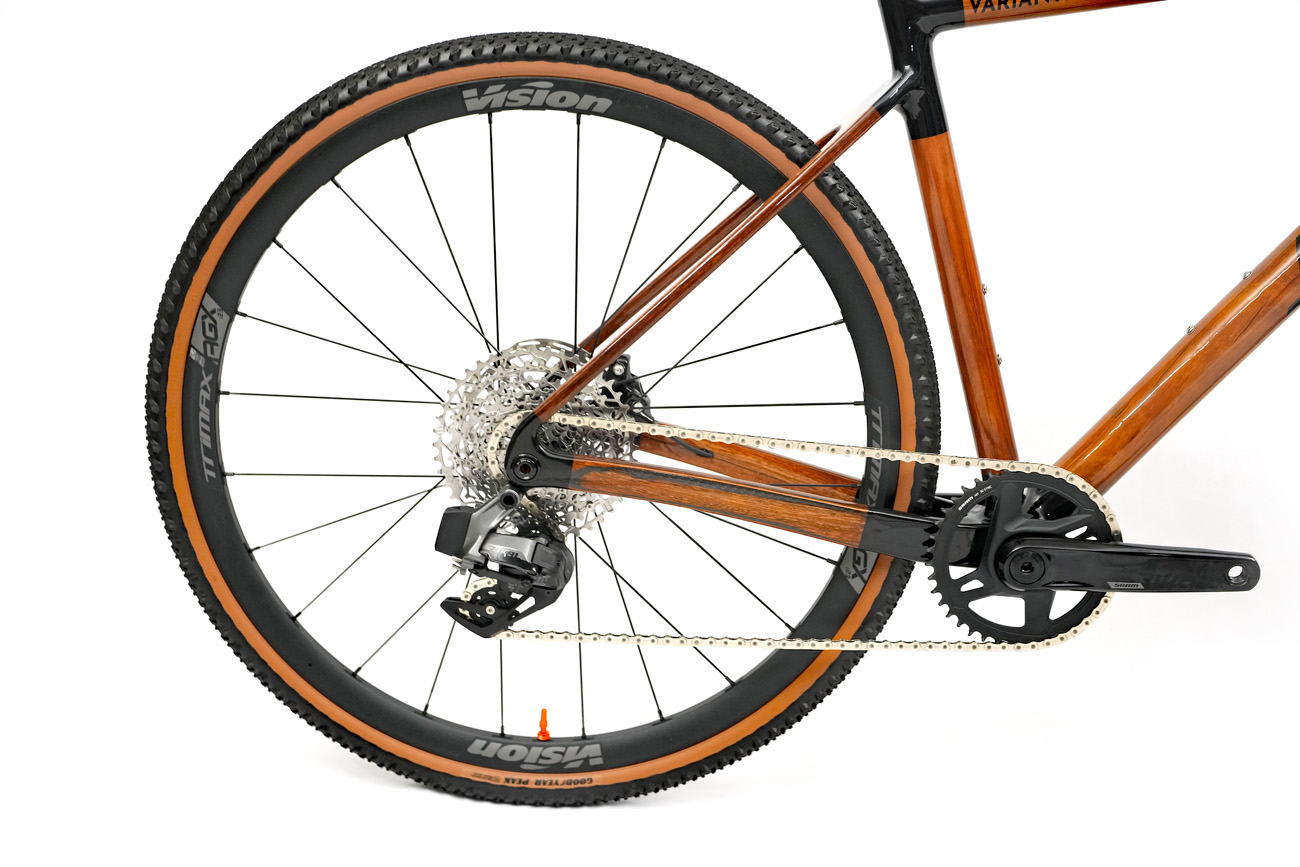

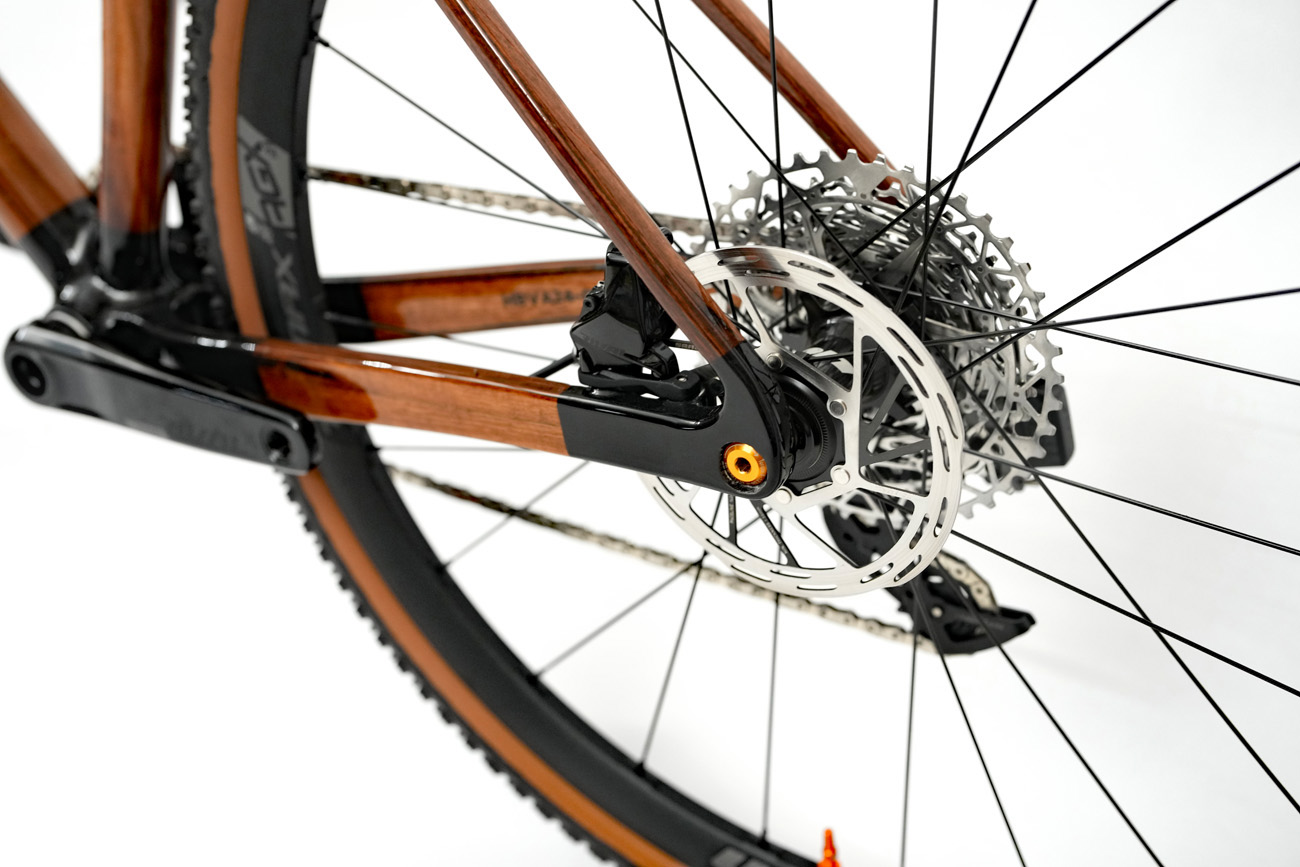

Designed with stable geometry, the Variantia ensures comfort during long adventures. Whether you’re in the saddle for hours or navigating a quick city commute, HTech’s signature performance ride remains consistent. Robust construction, including larger-diameter rear stays and thick main tubes, allows the Variantia to withstand punishing trails, from rocky paths to steep drops. The machined curvature in the dropped rear seatstays enhances compliance for every journey.

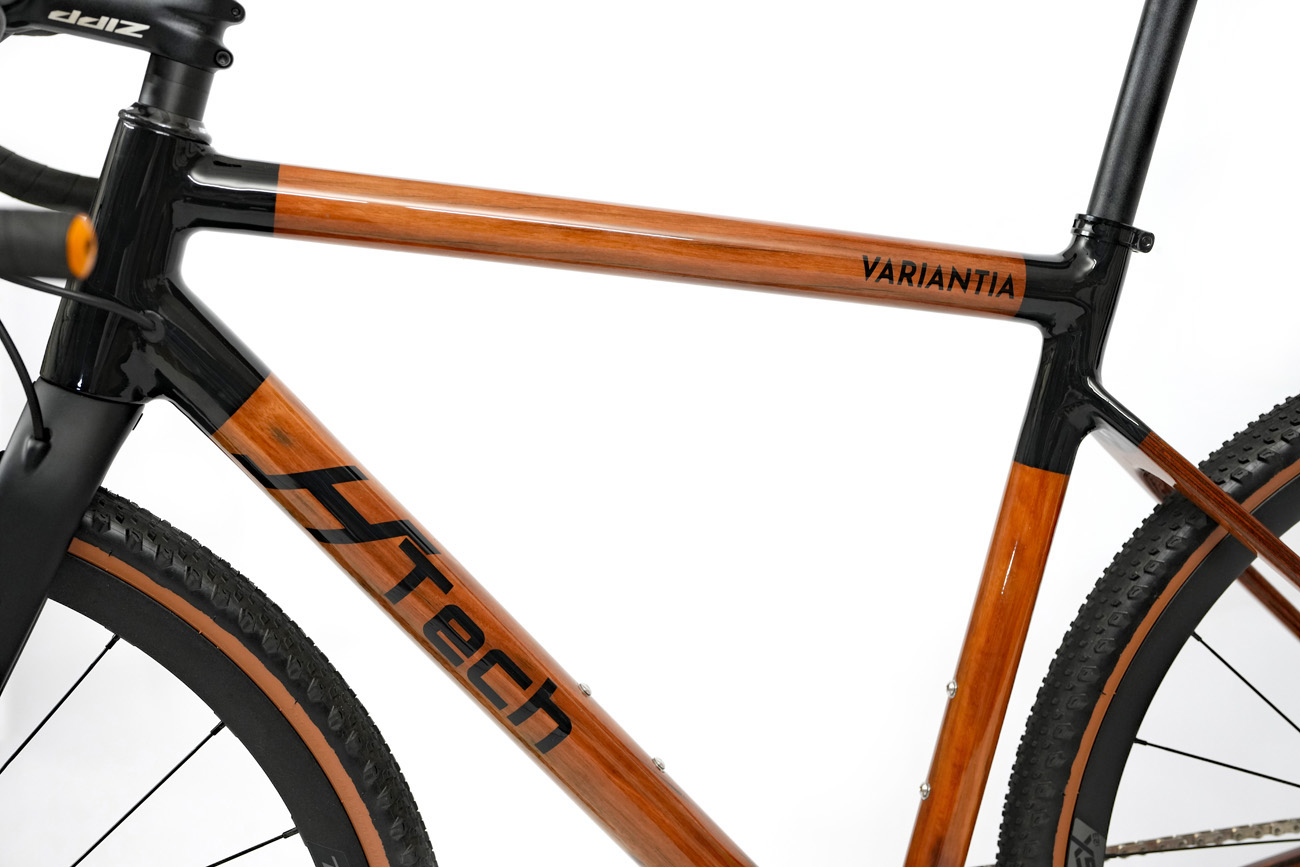

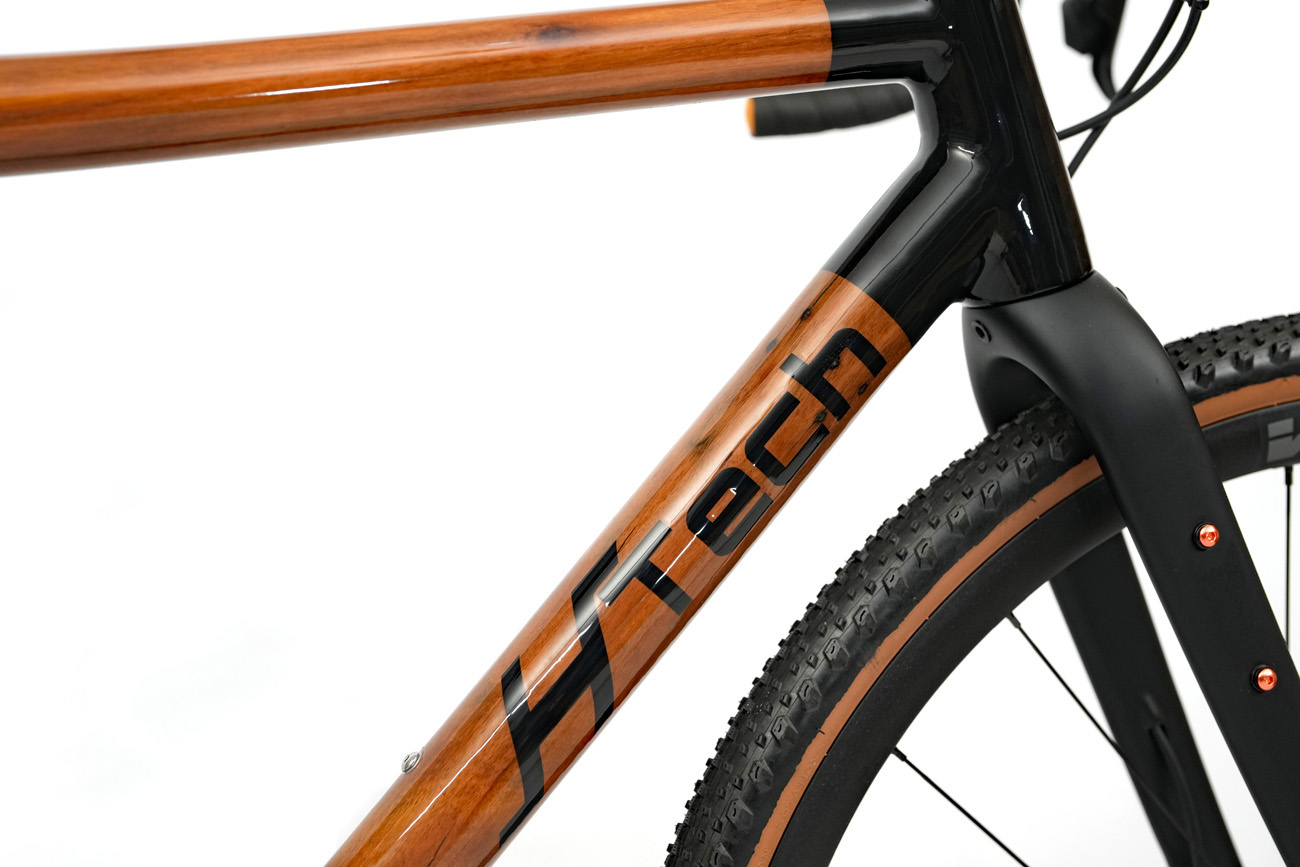

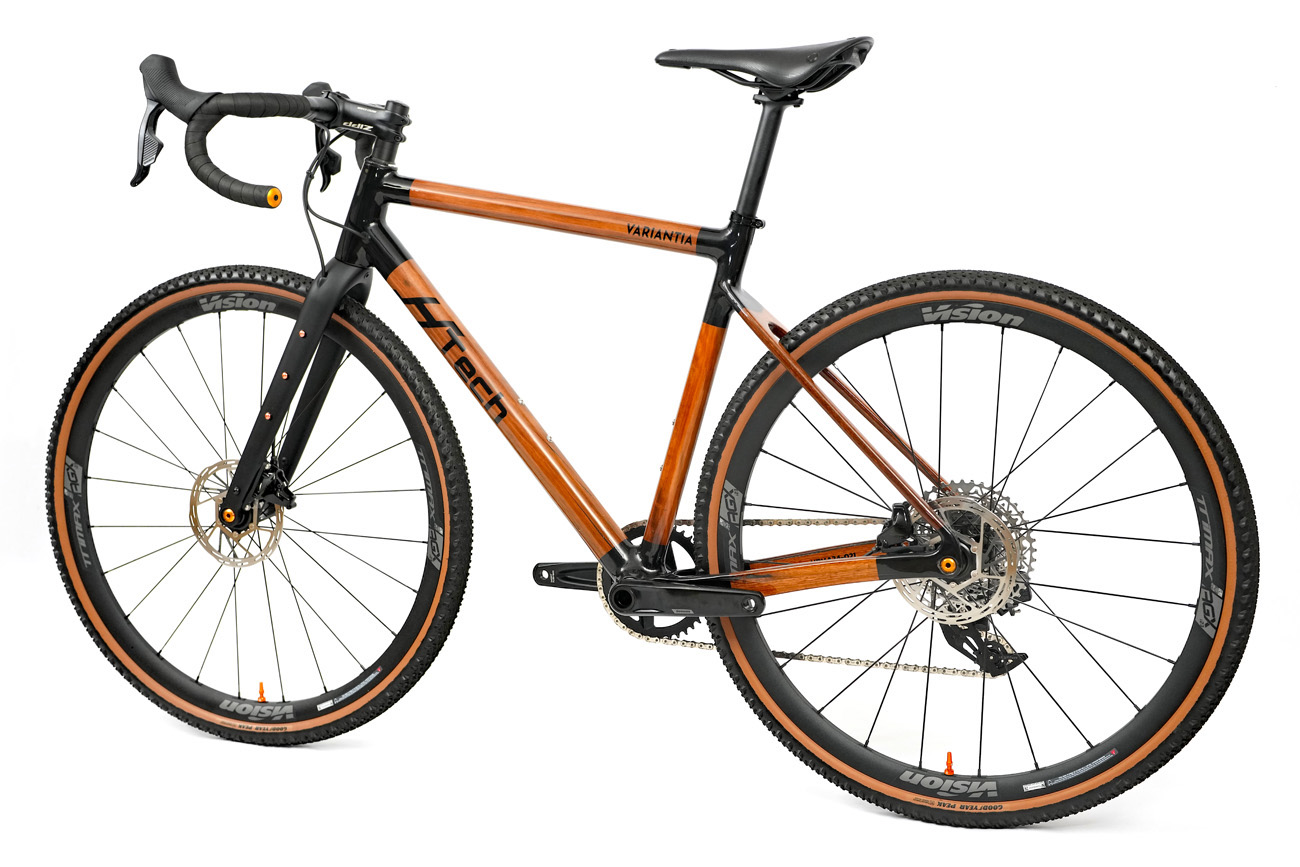

Distinct aesthetics define the Variantia. The HRP manufacturing process results in a striking appearance, with black carbon fiber lugs contrasting beautifully against the natural wood grain tubes. It’s an attention-grabber that certainly turns heads. Protected by a durable high-gloss automotive clear coat, your Variantia is ready to tackle any challenge. Even after muddy rides, cleaning the frame is as straightforward as with any other bike.
Whether you’re chasing sunrises on winding dirt roads or navigating bustling urban streets, unleash your exploration with the Variantia. It’s more than just a gravel bike frame, it’s your gateway to adventure, taking you wherever your pedals lead.
Build Level | SRAM Rival | SRAM Force | SRAM Red | |
---|---|---|---|---|
Full Groupset | SRAM Rival XPLR | SRAM Force XPLR | SRAM Red XPLR | |
Wheelset | Vision Trimax AGX | Zipp 303 XPLR S | Zipp 303 XPLR SW | |
Tyres | Goodyear Peak Ultimate | Goodyear XPLR Inter | Goodyear XPLR Inter | |

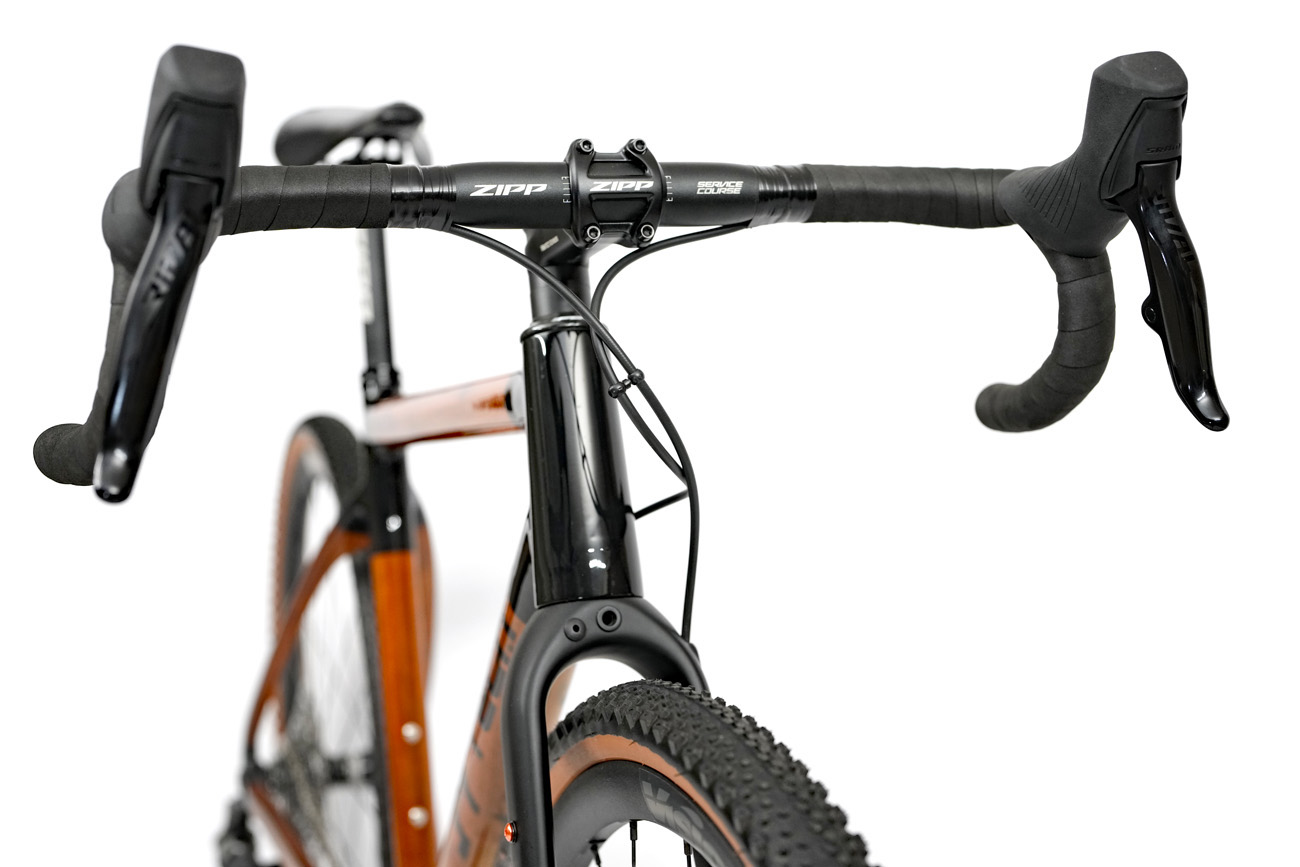

Handlebar | Zipp Service Course XLPR | Zipp Service Course SL XLPR | Zipp Service Course SL XLPR | |
Stem | Zipp Service Course | Zipp Service Course SL | Zipp Service Course SL | |
Seatpost | Zipp Service Course | Zipp Service Course SL | Zipp Service Course SL | |
Saddle | Brooks C15 | Brooks C15 | Brooks C15 | |
Price | ||||
All Prices are in AUD. Standard builds levels can be changed to suit your preferences. Custom builds available. Contact us to discuss your requirements. |
Frame Construction | Lugged with HTech HRP |
Wood Species | Jarrah |
Frame Classification | Gravel, Trail |
Geometry | Compact Stable Frame |
Cable Routing | Semi Internal, Wireless only |
Seatpost Diameter | Round 27.2mm |
Headset | Tapered Integrated 1.5 |

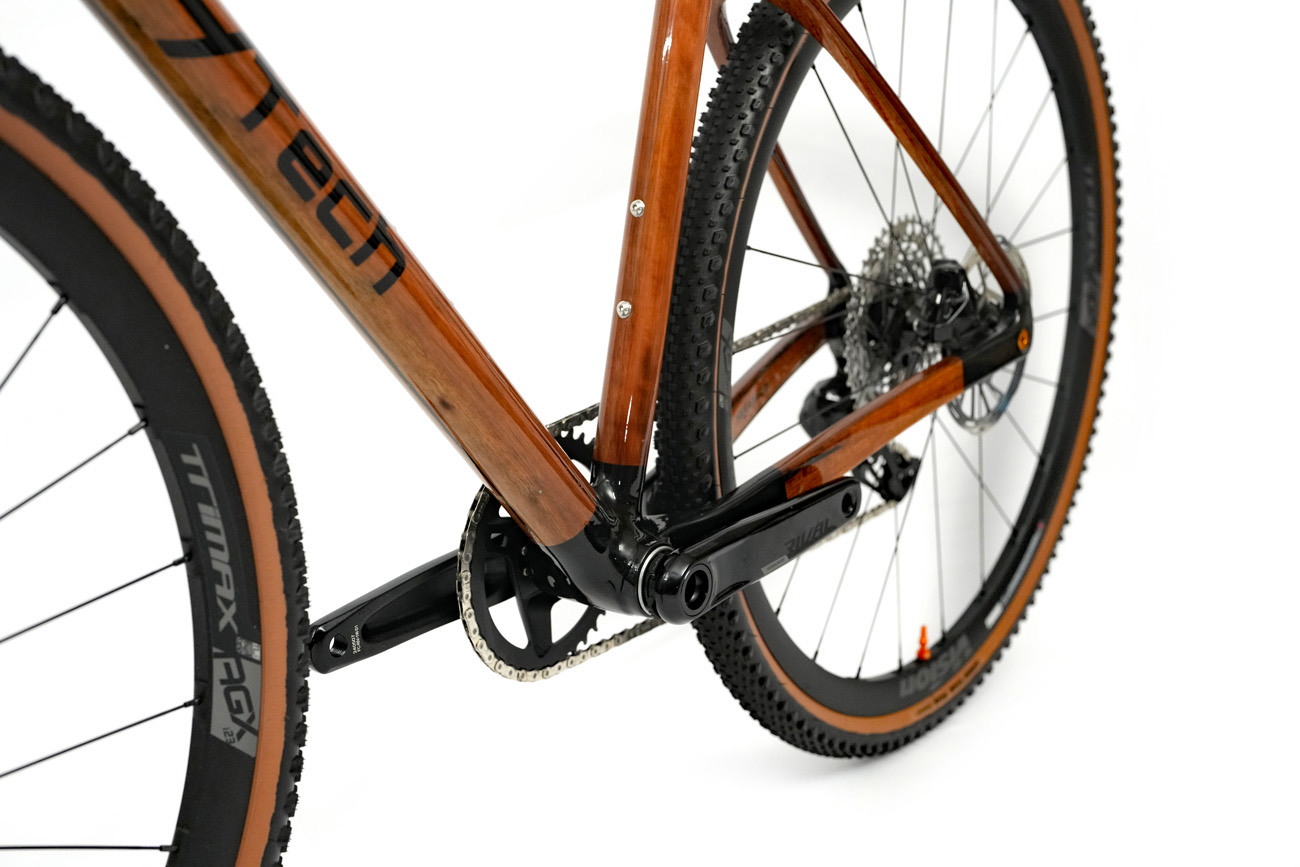

Bottom Bracket | PF86 |
Maximum Tyre Size | 50mm |

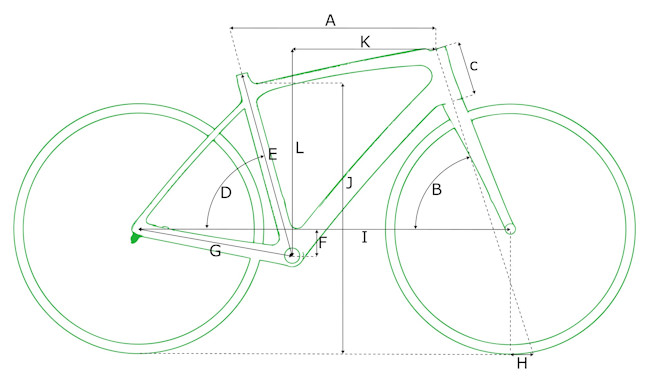

Geometry | 50 | 53 | 56 | 59 |
---|---|---|---|---|
A - Effective Top Tube | 520 | 540 | 558 | 575 |
B - Head Tube Angle | 70.1° | 70.5° | 70.6° | 70.7° |
C - Head Tube Length | 126 | 141 | 156 | 177 |
D - Seat Tube Angle | 74.5° | 74° | 73.5° | 73° |
E - Seat Tube Length | 490 | 510 | 528 | 545 |
F - Bottom Bracket Drop | 73 | 73 | 73 | 73 |
G - Chainstay Length | 430 | 430 | 430 | 430 |
H - Trail | 76.4 | 73.7 | 73 | 72.4 |
I - Wheelbase | 1017 | 1029 | 1041 | 1053 |
J - Standover | 737 | 761 | 777 | 792 |
K - Reach | 369 | 379 | 387 | 393 |
L - Stack | 546 | 561 | 575 | 596 |
